Suzuki Marine Diagnostic kit

$235.00

Program, you can make many tests and analyses of Suzuki Outboard engines

Category:

Description

Diagnostic kit for Suzuki Outboard Engines

The Suzuki Diagnostics can finally be offered to the independant powersports workshop or DIY home mechanic.

The “Suzuki Diagnostics Software Program” communicates with the Engine Control Unit (“ECU”) and the Engine Management Module (“EMM”) and is used for retrieving engine diagnostic information, setting engine operating parameters, performing engine maintenance and printing engine reports on Suzuki engines.

The diagnostic kit includes:

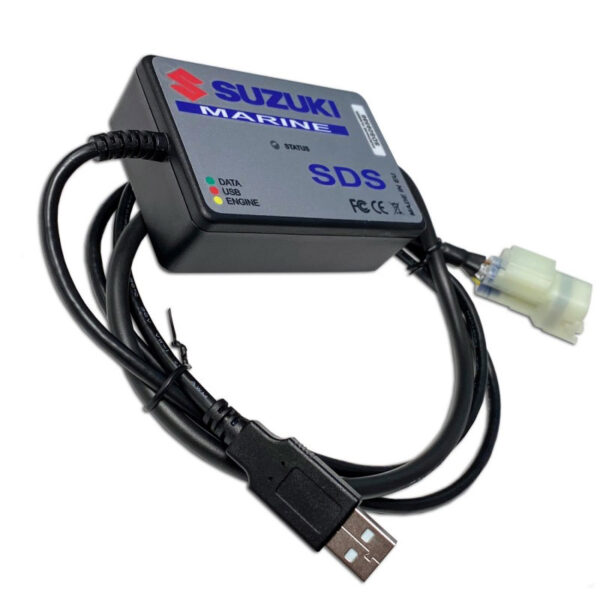

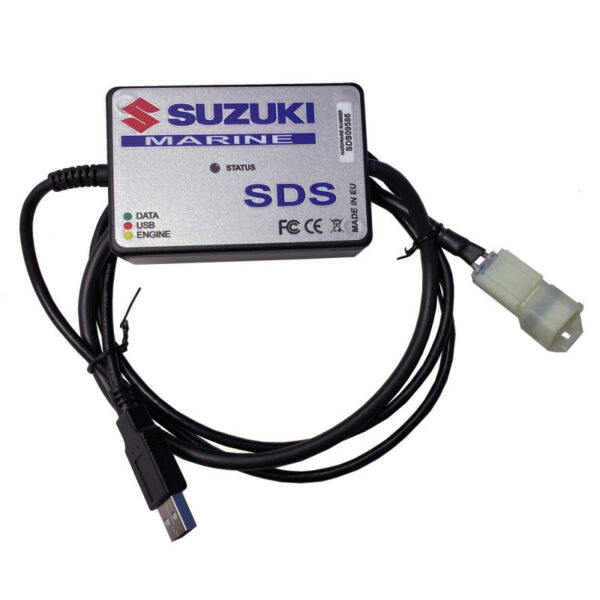

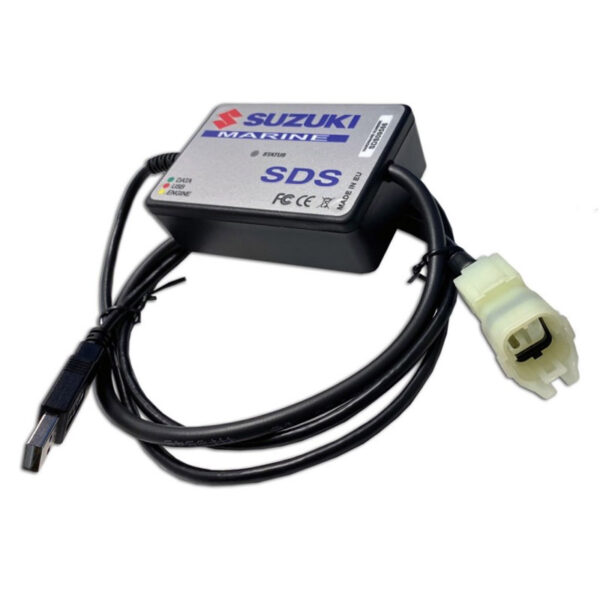

  • SDS Diagnostic device with cables (main unit for diagnosis of Suzuki engines)
  • USB Flash drive with software
  • Unlimited updates via the downloadable website,
  • Access to the workshop (service manuals)
  • User manual
  • 24 MONTHS WARRANTY

Using this Diagnostic Kit with the Suzuki Diagnostics Software Program, you can make many tests and analyses, such as:

  • Reading and resetting the fault code(s).
  • Reading the EMM module identification.
  • Reading sensors and actuators in real time.
  • Reading of technical parameters in real-time.
  • Tests operation of the electric fuel pump.
  • Tests sensors and actuators in real time.
  • Tests operation of the injectors and high voltage coils.
  • Generating the graphics of engine operation.
  • Reading the serial numbers of the injectors.
  • Replace the injector and injector data file.
  • Reading of temperature and voltage of the TPS.
  • Printing or export of diagnostic data to PDF files.
  • Other tests and analyzes.

Compatible with:

  • DF9.9B/15A/20A – Serial number: 310001 and later
  • DF25A/30A – Serial number: 510001 and later (new)
  • DF40/50 – 1999 and later
  • DF40A/50A – Serial number: 110001 and later
  • DF60A – 2010 and later
  • DF60/70 – 1998 and later
  • DF70A/80A/90A – 2009 and later
  • DF90/115 – 2001 and later
  • DF100 – 2009 and later
  • DF140 – 2002 and later
  • DF100A/115A/140A – Serial number: 310001 and later
  • DF150/175 – 2006 and later
  • DF150TG/ZG/175TG/ZG – Serial number: 410001 and later (new)
  • DF200A – Serial number: 510001 and later (new)
  • DF200AP – Serial number: 510001 and later (new)
  • DF200/225/250 – 2004 and later
  • DF250S – 2008 and later
  • DF300 – 2007 and later
  • DF250AP/300AP – Serial number: 310001 and later (new)

For models from 2006 and older you must buy also SUZUKI MARINE ADATER (ref:09933-19841)

Language support in Software:

  • English

Minimum computer requirements:

  • Computer with installed Windows XP, Windows 7, Windows 8, Windows 10 or Windows 11 operating system,
  • VGA or higher resolution display (SVGA),
  • Mouse or other pointing device,
  • At least 300Mb of free space on HDD,
  • One unused USB port
