JL Audio® M3 10″ Marine Subwoofer
Price range: $329.99 through $409.99
- Description
- Additional information
- Specs
Description
PLAY BETTER
M3 marine subwoofers are purpose-built to deliver incredible sub-bass performance in moderate power applications.
PRODUCES AMAZING BASS IN OPEN-AIR APPLICATIONS
ENGINEERED FOR USE WITHOUT A DEDICATED ENCLOSURE
MODELS AVAILABLE WITH BUILT-IN RGB LED LIGHTING
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
3-YEAR WARRANTY
WHAT YOU’LL LOVE
OUTSTANDING SOUND QUALITY
This is bass that will impress you, not only with its sheer level, but even more with its smoothness, balance and precision.
INFINITE BAFFLE DESIGN
M3 marine subwoofers are purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind it.
POWER VERSATILITY
These subwoofers are designed to benefit from operation with quality amplification .
DMA-OPTIMIZED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

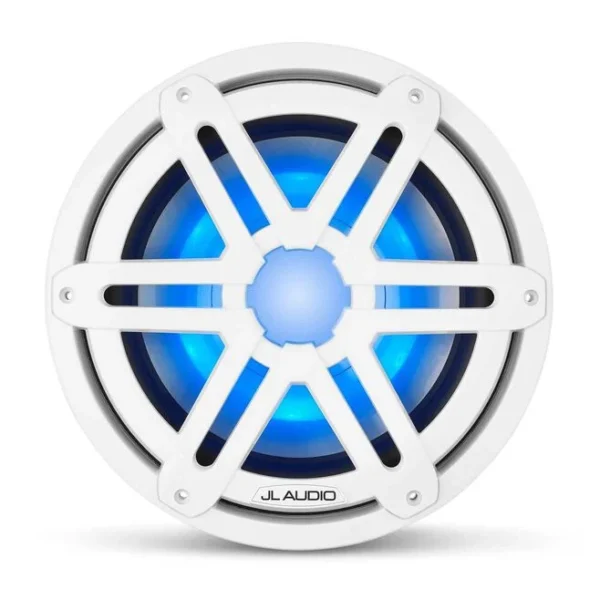

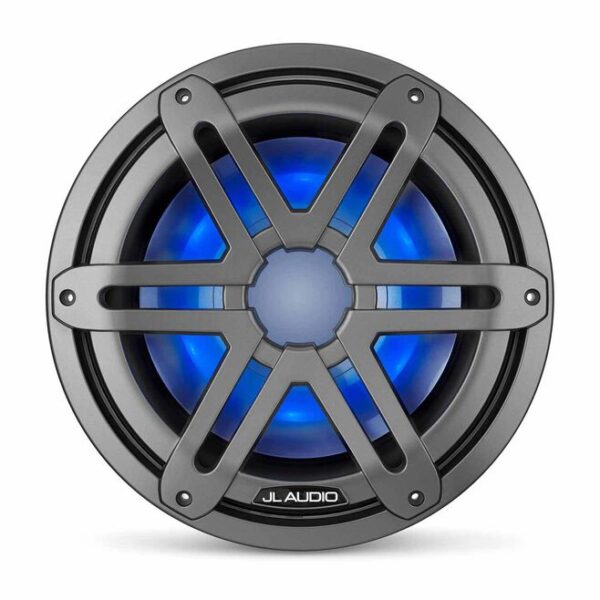

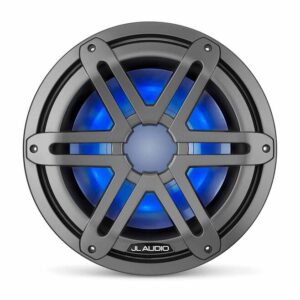

BUILT-IN RGB LED LIGHTING
Offered on sport models, multicolor LEDs produce a vibrant accent glow.
Additional information

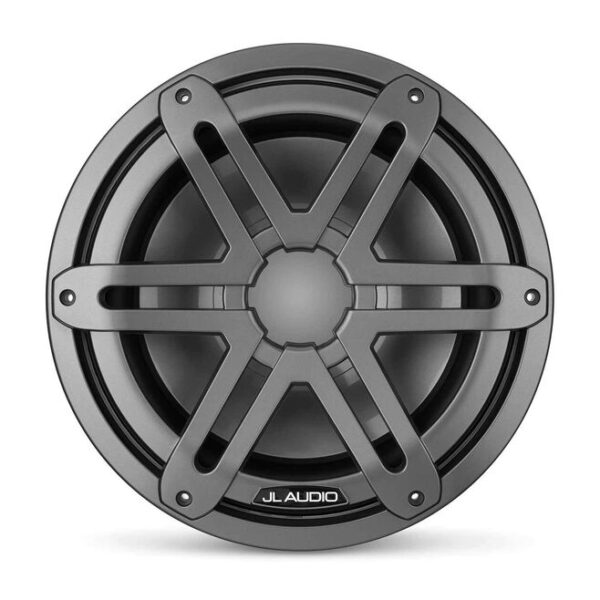

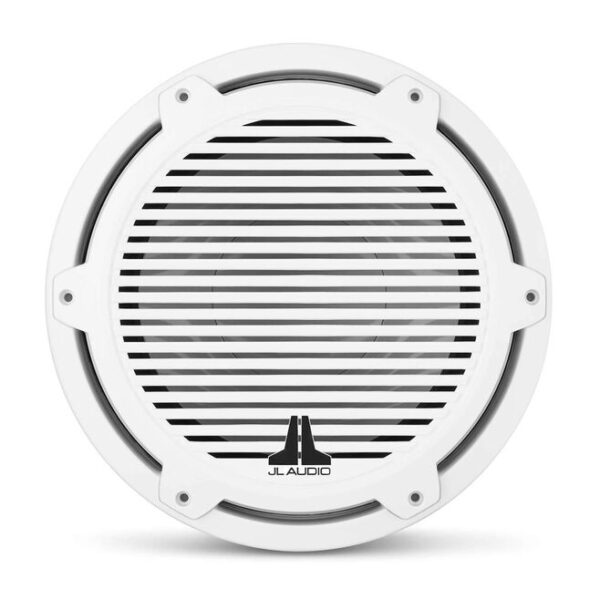

| JL Speaker Color | Gray Sport, White Classic, White Sport |
|---|---|
| LED Lighting | No, Yes |
General |
|
| Sizes | 10″ |
|---|---|
| Color | White Classic, White Sport or Gray Sport |
| Physical dimensions (Diameter) | 10.75″ (273 mm) |
| Physical dimensions (Depth) | 10″ (Classic): 6.50″ (165 mm) 10″ (Sport): 6.58″ (203 mm) |
| Weight | 12.6 lbs (5.7 kg) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 175 W |
| Sensitivity (SPL @ 1 W/1 m) | 87.23 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 50-175 W |
| LED lighting | yes – RGB (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 108 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Warranty | 3 years |
Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 22 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 5″ (127 mm) |
|---|---|
| Frontal grille protrusion | 10″ (Classic): 1.50″ (38 mm) 10″ (Sport): 1.58″ (40 mm) |
| Mounting hole | 8.875″ (225 mm) |
| Bolt hole circle | 9.71″ (247 mm) |
| Driver displacement | 0.052 cu ft (1.47 L) |
Parameters |
|
| Free Air Resonance (FS) | 41.84 Hz |
|---|---|
| Electrical “Q” (Qes) | 0.806 |
| Mechanical “Q” (Qms) | 11.751 |
| Total “Q” (Qts) | 0.754 |
| Equivalent Compliance (Vas) | 1.29 cu ft (36.53 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 0.42″ (10.7 mm) |
| Reference Efficiency (NO) | 0.34% |
| Effective piston area (SD) | 50.68 in² (0.0327 m²) |
| DC resistance (RE) | 3.957 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75″ (19 mm) |
|---|---|
| Front baffle thickness | 0.75″ (19 mm) |
| Volume (net int.) | 2.00 cu ft (56.6 L) |
| External width (W) | 18″ (457 mm) |
| External height (H) | 18″ (457 mm) |
| External depth (D) | 14.5″ (368 mm) |
| -3 dB cutoff frequency (F3) | 42.9 Hz |
| System resonance (FC) | 53.66 Hz |
| System Q at resonance (QTC) | 0.967 |
Additional |
|
| Additional |
The enclosure recommendations listed above are external dimensions which assume the use of 0.75″ (19 mm) thick material. If you are using 0.625″ (16 mm) thick material, subtract 0.25″ (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625″ (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
